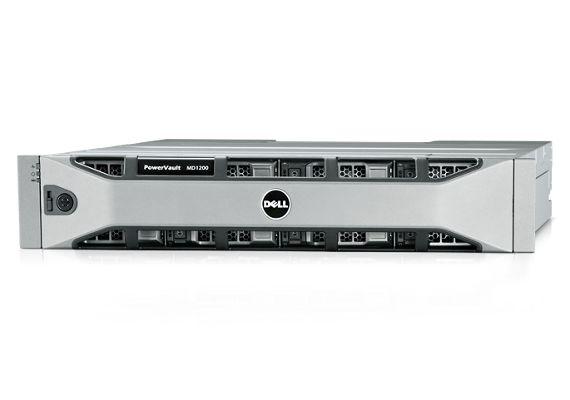

PowerVault MD1200 Direct Attached Storage ราคาดี คุณภาพล้น

SAS 2TB x 12

PERC H810

HDD 3.5

Raid 0 1 10 5 6 50 60

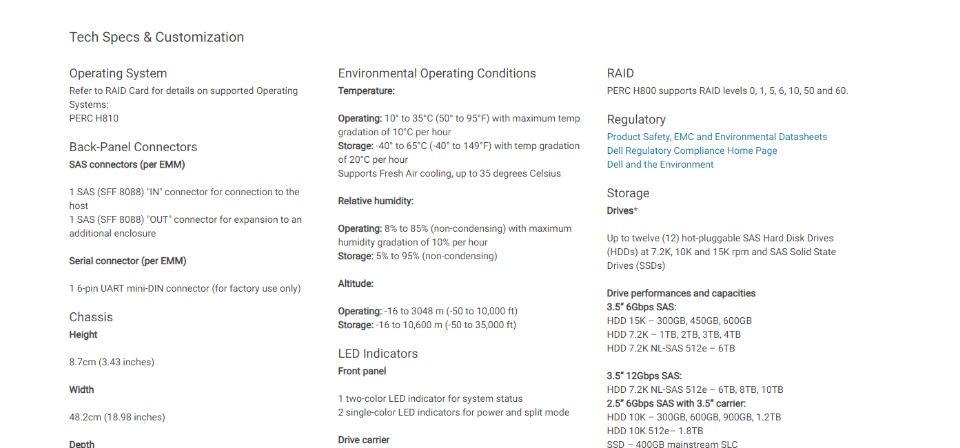

Operating System

Refer to RAID Card for details on supported Operating Systems:

PERC H810

Back-Panel Connectors

SAS connectors (per EMM)

1 SAS (SFF 8088) "IN" connector for connection to the host

1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure

Serial connector (per EMM)

1 6-pin UART mini-DIN connector (for factory use only)

Chassis

Height

8.7cm (3.43 inches)

Width

48.2cm (18.98 inches)

Depth

59.4 (23.39 inches)

Weight

28.39 kg (62.6 lb) (maximum configuration)

8.84 kg (19.5 lb) (empty)

SAS connectors (per EMM)

1 SAS (SFF 8088) "IN" connector for connection to the host

1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure

Serial connector (per EMM)

1 6-pin UART mini-DIN connector (for factory use only)

Connectivity

Support for the following configurations:

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)

Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)

Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 5 and a separate connectivity to drives 6 through 11.

Environmental Operating Conditions

Temperature:

Operating:10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour

Storage:-40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour

Supports Fresh Air cooling, up to 35 degrees Celsius

Relative humidity:

Operating:8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour

Storage:5% to 95% (non-condensing)

Altitude:

Operating:-16 to 3048 m (-50 to 10,000 ft)

Storage:-16 to 10,600 m (-50 to 35,000 ft)
