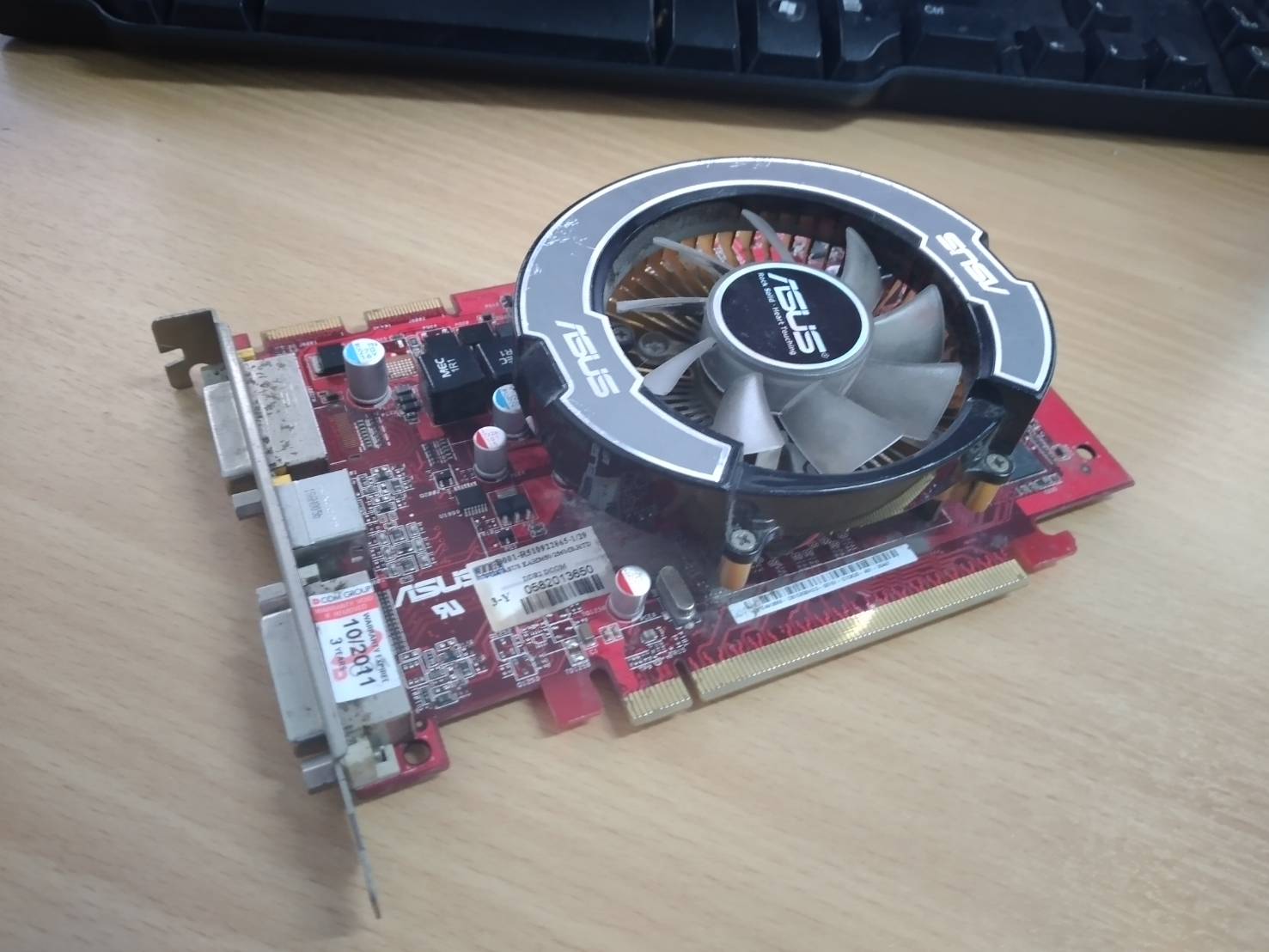

ASUS EAH3650 SILENT (256 MB)
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

Name / Brand / Architecture

Manufacturer: ASUS
Model: EAH3650 SILENT (256 MB)
Part number: EAH3650 SILENT/HTDI/256M
Based on: ATI Radeon HD 3650 GDDR3 [Compare]
Target market segment: Desktop
Die name: RV635
Architecture: Unified Superscalar Shader Architecture
Fabrication process: 55 nm
Transistors: 378 million
Bus interface: PCI-E 2.0 x 16

Frequency

Graphics clock: 725 MHz

Memory specifications

Memory size: 256 MB
Memory type: GDDR3
Memory clock: 800 MHz
Memory clock (effective): 1600 MHz
Memory interface width: 128-bit
Memory bandwidth: 25.6 GB/s

Cores / Texture

Color ROPs: 4
Stream processors: 120
Texture units: 8
Texture fetches / clock cycle: Up to 40
Textures/pixel: Up to 128
RAMDACs: 400 MHz
Decoders: DivX
H.264
MPEG 1
MPEG-2
VC-1

SLI / Crossfire

Maximum crossfire options: 2-way

Electric characteristics

Maximum power draw: 65 W

Video features

Multi-monitor: Up to 2 displays
Maximum digital resolution: 2560 x 1600
Maximum DVI resolution: 2560 x 1600
Maximum HDMI resolution: 1920 x 1200
Maximum VGA resolution: 2048 x 1536
Anti-Aliasing technologies: 24 x CFAA
8 x MSAA
Adaptive MSAA & SSAA
Temporal AA
HDMI: Yes
HDMI version: 1.2

Performance

Pixel fill rate: 2.9 Gigapixels/s
Texture fill rate: 5.8 Gigatexels/s
Single presision compute power: 174 GFLOPS
Double precision compute power: n/a

External connectors

Standard display connectors: 2 x Dual-Link DVI-I
S-Video
Audio input for HDMI: Yes

Other features / Support

Other features: ATI/AMD PowerPlay
HDCP
High Dynamic Range (HDR) Support
OpenGL support: 3.3
DirectX support: 10.1
Shader model: 4.1
Windows driver support: Windows 7
Windows Vista
Windows XP

Notes


Passive Cooling
ASUS EAH3650 SILENT (256 MB)
ASUS EAH3650 SILENT (256 MB)
ASUS EAH3650 SILENT (256 MB)
ASUS EAH3650 SILENT (256 MB)
ASUS EAH3650 SILENT (256 MB)
ASUS EAH3650 SILENT (256 MB)
